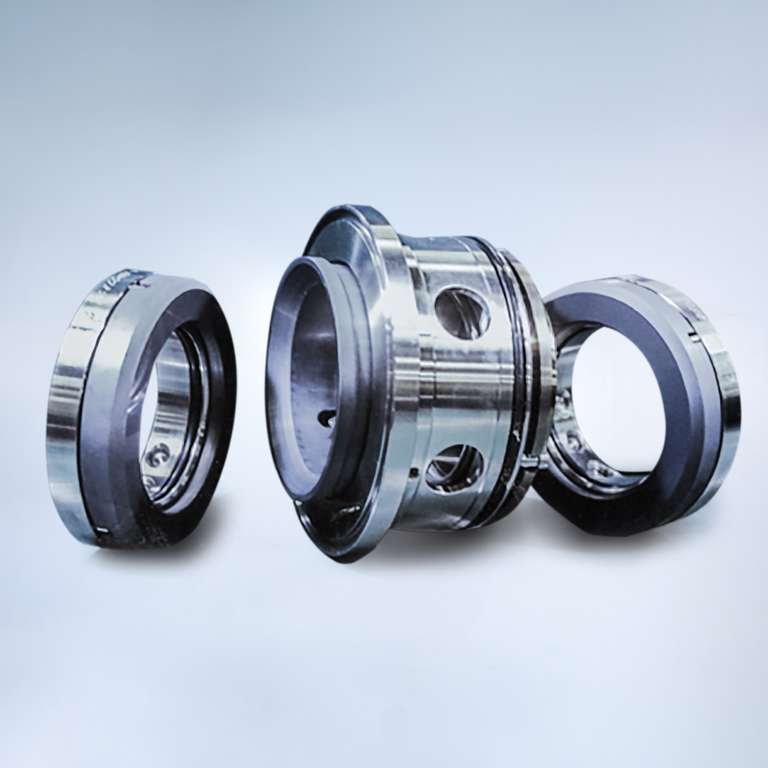

H9DSUS

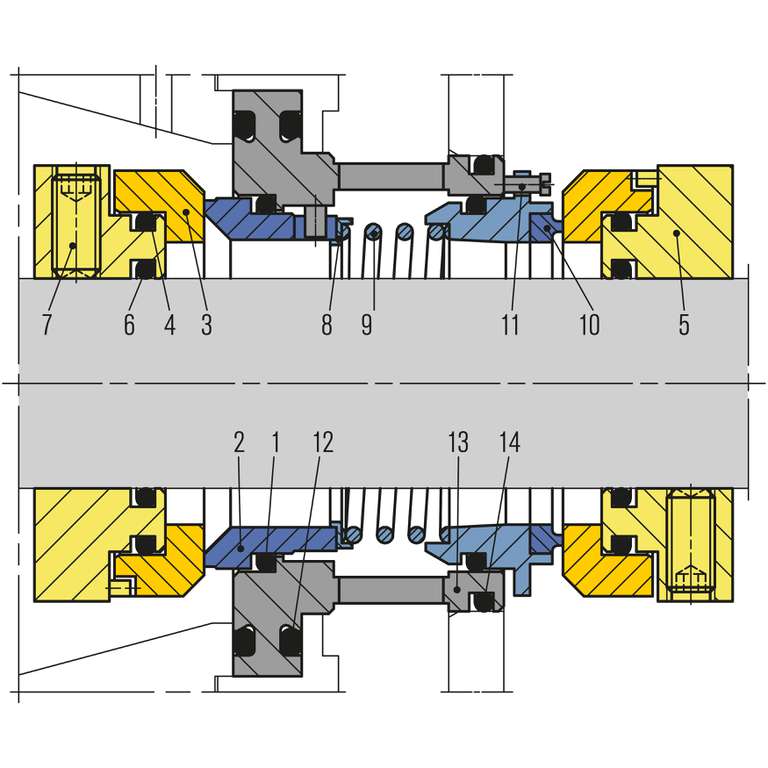

| Item | Description |
| 1, 4, 6, 12, 14 | O-Ring |
| 2, 10 | Seal face |
| 3 | Mating ring |
| 5 | Collar |
| 7 | Set screw |
| 8 | Spring holder |
| 9 | Spring |
| 11 | Drive pin |
| 13 | Housing |
H9DSUS
Features
- Dual seal
- Stationary single spring
- Oil-lubricated, oil-buffered
- Spring and pins not in contact with the medium
- Highly resistant silicon carbide sliding materials
Advantages
- No flushing, no water injection or circulating unit required
- Very low heat generation at sliding faces, optimum heat dissipation due to oil buffer
- Reliable performance, long service-life, low maintenance required
- Insensitive to particles in the media, no clogging, no contamination
- Seal faces at atmospheric and product side are identical in construction
- Buffer oil supply by just a small reservoir needed
- No leakage to the atmosphere – any leakage is absorbed by the buffer oil
Operating range
Pressure: p1 = …6 bar (87PSI)
Temperature: t = … +60°C (158°F)
Sliding velocity: vg = 20 m/s (66 ft/s)
Solid content: …30 wt%
Materials
Seat: Silicon carbide
Secondary seals: NBR, EPDM, FKM
Metal parts: Stainless steel, Titanium, others
Recommended applications
- Water and waste water technology
- Mining industry
- Process industry
- Sewage water
- Polluted media
- Slurries
