M461CL-E3

M461CL-E3
Request product

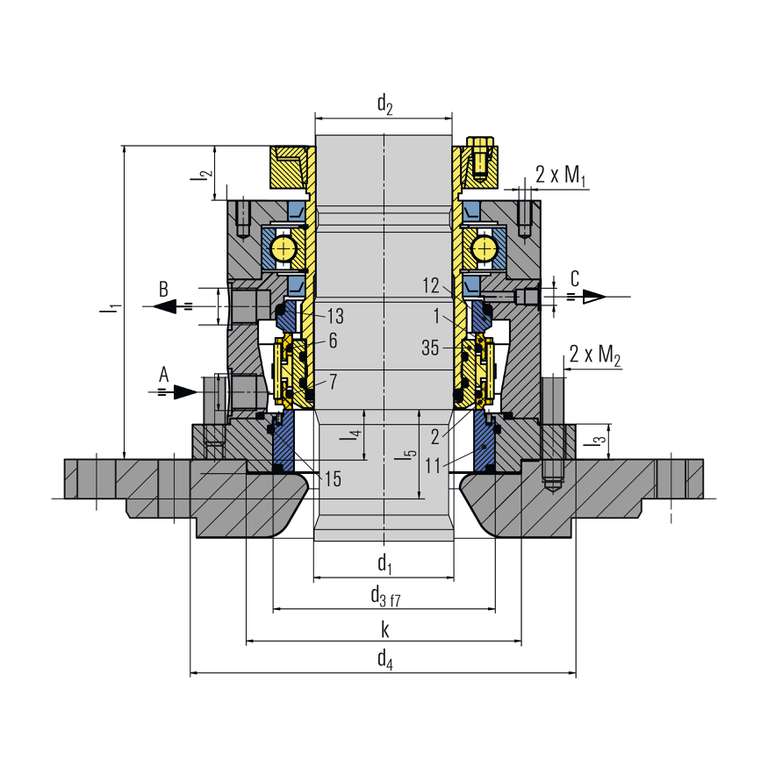

ItemDescription
1Seal face, atmospheric side
2Seal face, product side
11Seat, product side
12Seat, atmospheric side
35Torque transmission, metal free
6, 7, 13, 15O-Ring

M461CL-E3

Features

  • Retrofit for JC Type 109 / Type 109B
  • Cartridge double seal for top entry drives
  • For glass lined vessels
  • With integrated floating bearing
  • Liquid lubricated
  • Self-closing on product side
  • For stepped and unstepped shafts
  • Unbalanced
  • Independent of direction of rotation
  • Multiple springs rotating

Advantages

  • Ready-to-fit and factory-tested unit
  • The M481CL-E3 will remain closed even during pressure variations or pressure reversal. Operation is possible with buffer fluid (p1max = 6 bar (87 PSI)) or pressurized with barrier fluid as double seal.
  • The seal can be lifted off the glass-lined flange as a complete cartridge. The sensitive glass lined basic flange remains mounted on the vessel.
  • Can be applied at higher pressure and rotating speed than specified by DIN.
  • Made of stainless steel, no protective coating required

Operating range

Shaft diameter:
d1 = 40 ... 125 mm (1.57" .... 4.92")

Pressure:
p1 = vacuum ...10 bar (...145 PSI)
p3 = max. 12 bar (174 PSI)

Temperature:
t1 = -40 °C ... +200 °C
(-40 °F ... +392 °F)

Sliding velocity:
vg = 0 ... 3 m/s (0 ... 9.8 ft/s)

For applications beyond this range, please inquire.
! It should be noted that the extremal values of each operating parameter cannot be applied at the same time because of their interaction.

Materials

Seal faces: Carbon graphite (B), FDA compliant
Seats: Silicon carbide (Q1), FDA compliant
Secondary seals on product side: KL/M5
Secondary seals on atmospheric side: V
Springs: G
Metal parts: E (1.4122)
Parts in contact with product: AI-oxide (Buke5)

Standards and approvals

  • FDA
  • ATEX
  • DIN 28138 (mechanical seals for agitators)
  • DIN 28136 T3 (for glass lined vessels)
  • DIN 28137 T2 (flange connections for glass lined vessels)
  • DIN 28159 (shaft end for glass lined vessels)

Recommended piping plans

Closed circuit EagleBurgmann TS system, open circuit EagleBurgmann SPA, EagleBurgmann SPN

Product links:
EagleBurgmann TS1000
EagleBurgmann TS2000
EagleBurgmann SPA
EagleBurgmann SPN (manual)
EagleBurgmann SPN (automatic)
